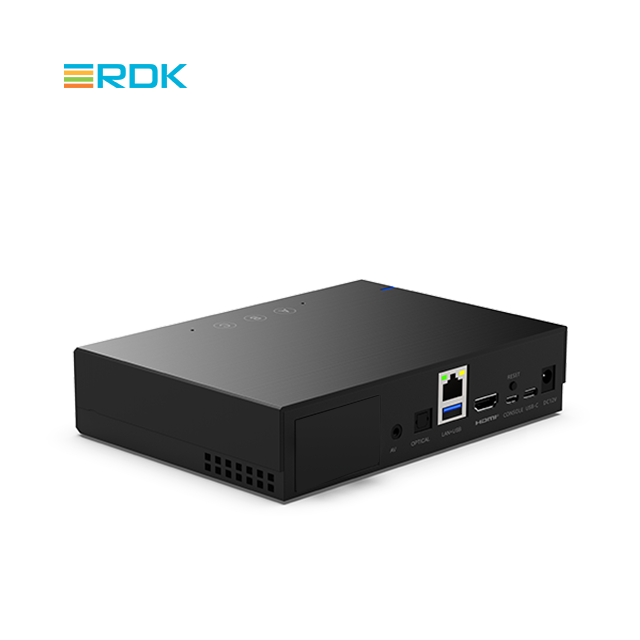

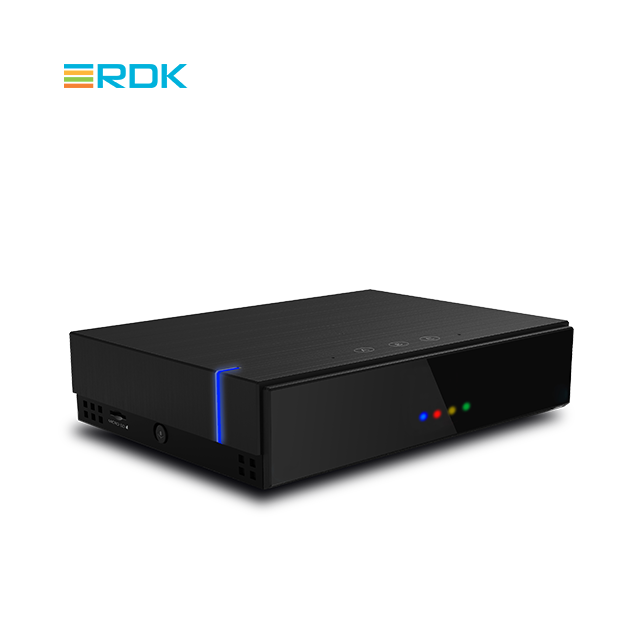

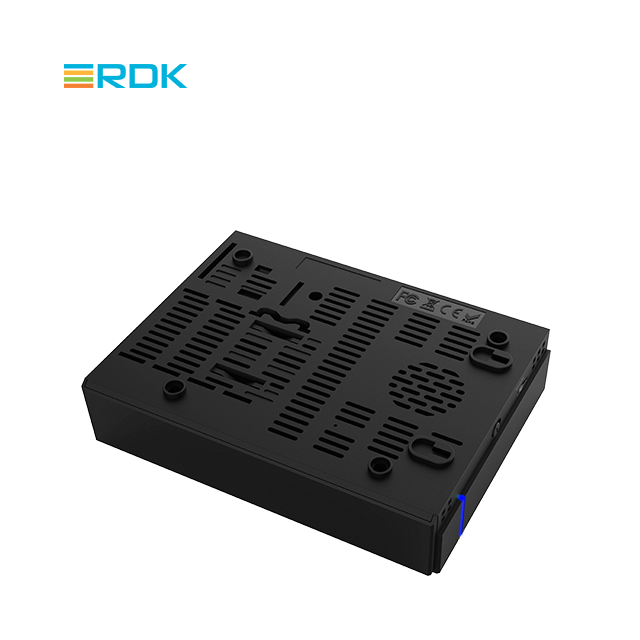

Amlogic S905Y4 Developer Box (RDK)

$199.99

System Support

Standard development environment utilizing GNU/GCC Android tool chain is supported.

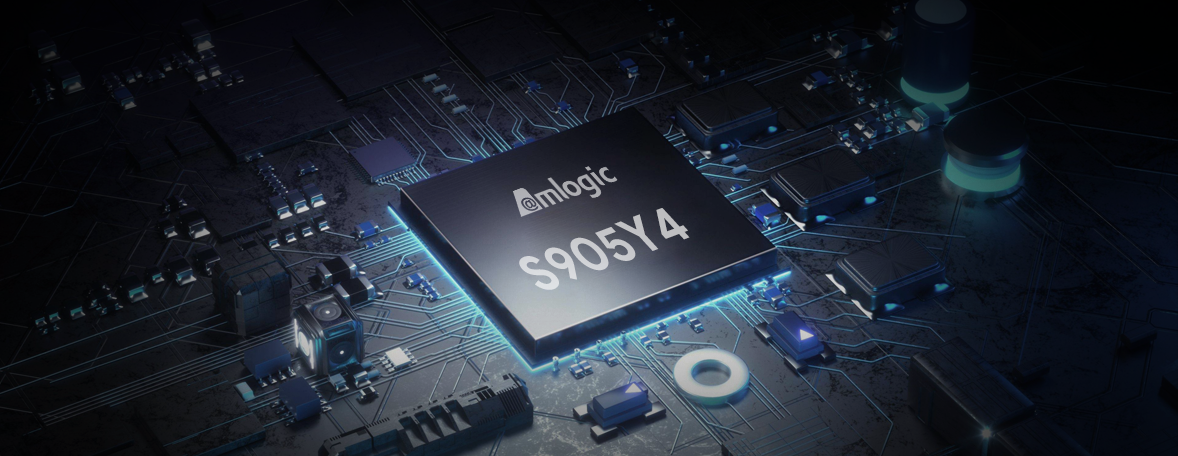

Chipset Amlogic S905Y4
RAM 2GB DDR4
Flash eMMC 8GB
Network
Wi-Fi 802.11 b/g/n/a/ac 2.4G/5G 2T2R MIMO Wi-Fi
Ethernet 100 Mbps Fast Ethernet
Bluetooth Bluetooth 5.0
DRM
Widevine,PlayReady
DVB
2x TS in, ISO7816 DVB-S2,DVB-T/T2/C,DVB-S2+DVB-T/T2C Combo,ISDE-T,ATSC-T
Video Decoding
Video Decoding   VP9 Profile-2 up to 4Kx2K@60fps
H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
AVS2-P2 Profile up to 4Kx2K@60fps
H.264 AVC HP@L5.1 up to 4Kx2K@30fps
H.264 MVC up to 1080P@60fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
RealVideo 8/9/10 up to 1080P@60fps
Video File Format Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
Video Output
Video Output 4K6P0 HDMI 2.1,CVBS,supporting CEC,Dynamic HDR and HDCP 2.2
Aspect Ratio Auto, Full Screen
Video Resolution 480i/p, 576i/p, 720i/p, 1080i/p and 4K x 2K
HDR HDR10/10+, HLG, Dolby Vision,TCH PRIME
Audio
Audio In/Out  Stereo DACs, SPDIF-in & out, 8Ch PDM, 12+Ch I2S in, 12+Ch I2S out
System
System RDK
