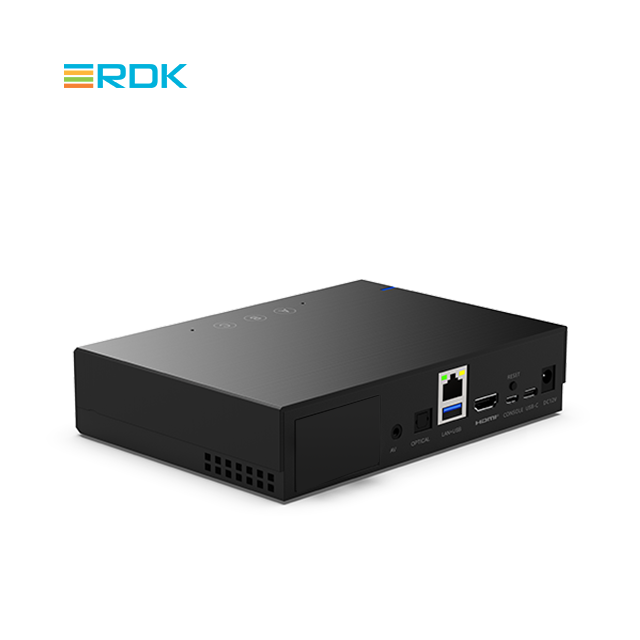

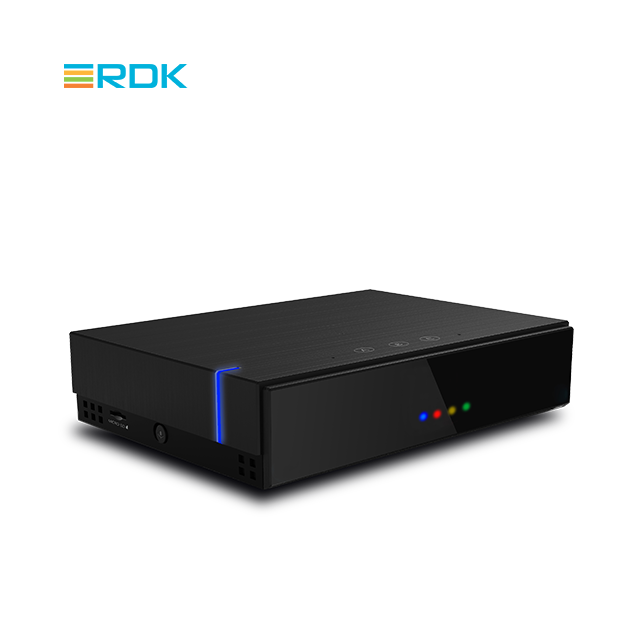

Amlogic S805X2 Developer Box （RDK）
$199.99
| System Support | |
| Standard development environment utilizing GNU/GCC Android tool chain is supported. | |

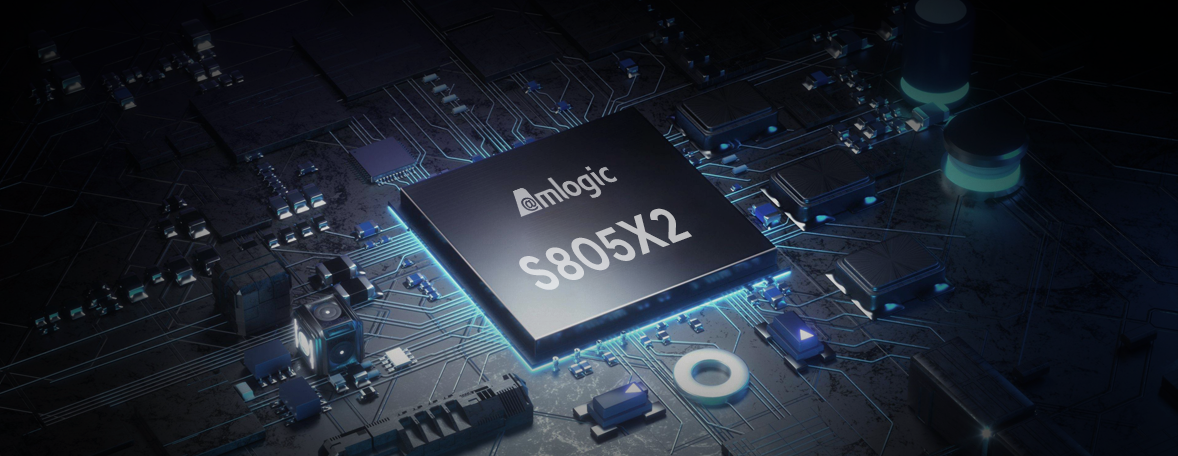

| Chipset | Amlogic S805X2 |
| RAM | 2GB DDR4 |
| Flash | eMMC 8GB |
| Network | |
| Wi-Fi | 802.11 b/g/n/a/ac 2.4G/5G 2T2R MIMO Wi-Fi |
| Ethernet | 100 Mbps Fast Ethernet |
| Bluetooth | Bluetooth 5.0 |
| DRM | |
| Widevine,PlayReady | |
| DVB | |
| 2x TS in, ISO7816 DVB-S2,DVB-T/T2/C,DVB-S2+DVB-T/T2C Combo,ISDE-T,ATSC-T | |
| Video Decoding | |
| Video Decoding | VP9 Profile-2 up to 4Kx2K@60fps |
| H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps | |
| AVS2-P2 Profile up to 4Kx2K@60fps | |
| H.264 AVC HP@L5.1 up to 4Kx2K@30fps | |
| H.264 MVC up to 1080P@60fps | |
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | |
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | |
| AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | |
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | |
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | |
| RealVideo 8/9/10 up to 1080P@60fps | |
| Video File Format | Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats |
| Video Output | |
| Video Output | 4K6P0 HDMI 2.1,CVBS,supporting CEC,Dynamic HDR and HDCP 2.2 |
| Aspect Ratio | Auto, Full Screen |
| Video Resolution | 480i/p, 576i/p, 720i/p, 1080i/p and 4K x 2K |
| HDR | HDR10/10+, HLG, Dolby Vision,TCH PRIME |
| Audio | |
| Audio In/Out | Stereo DACs, SPDIF-in & out, 8Ch PDM, 12+Ch I2S in, 12+Ch I2S out |
| System | |
| System | RDK |
